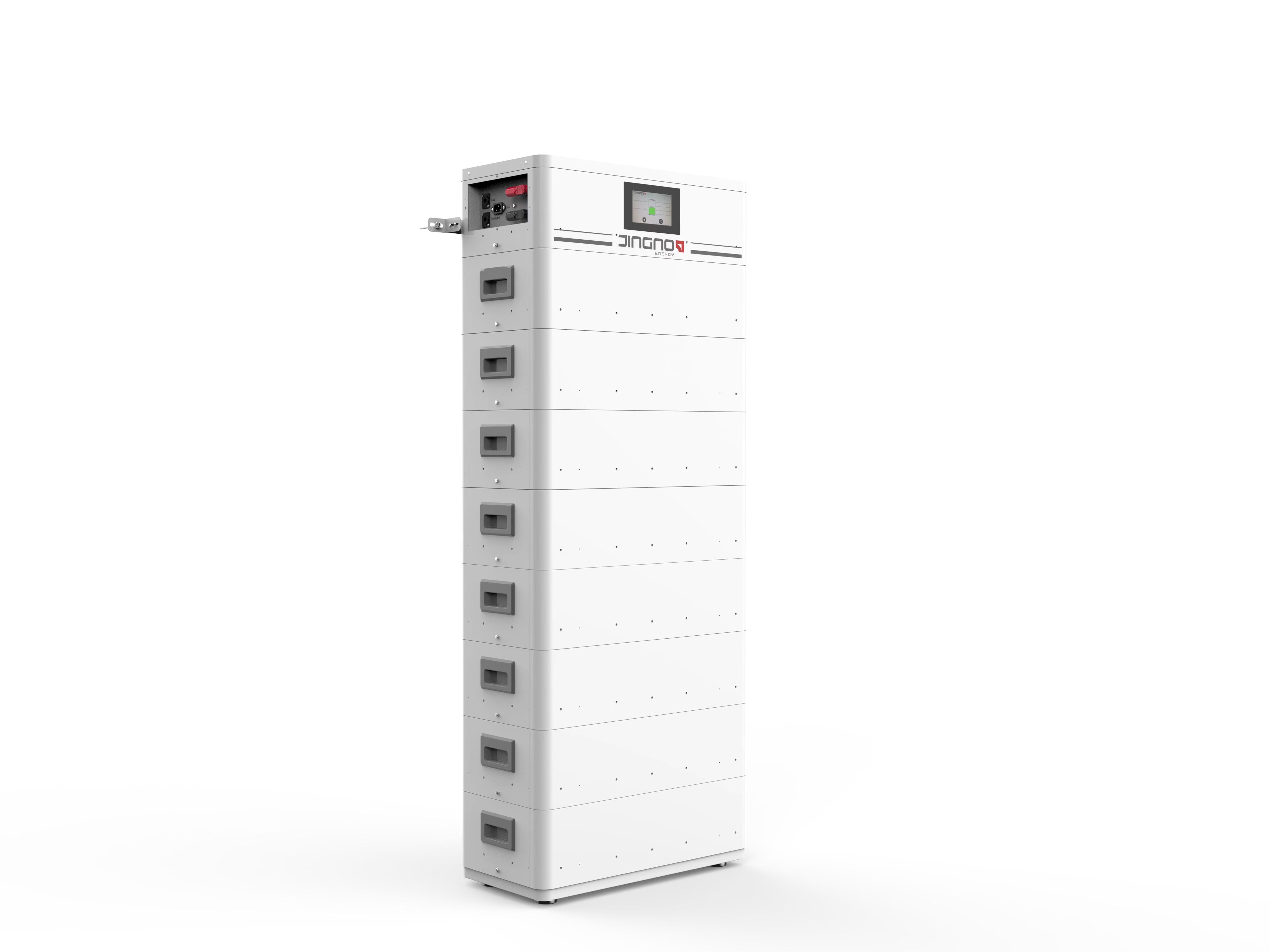

51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery
51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

$12,19999
$000
New Refund/ Return/ Cancelation Policy
Please be aware that arranging pallet deliveries by trucking companies is not only costly and time consuming, but also challenging in terms of booking available delivery slots, especially during the current market situation which is experiencing extremely high demand.
To reduce unnecessary additional trucking traffic, cost and delivery schedules, we are tightening our cancellation policy. We hope that this will encourage customers to consider more carefully before placing an order, and thus avoid requesting any cancellation.
Quantity
Only 100 left
Description

51.2V 22.53kWh High voltage 380V 480V LiFePO4 AC, DC ,Hybrid Coupled Solar Battery

This Home storage energy solar battery, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle.A self designed BMS protects the cell from abnormal temperature, current, voltage, SoC and SoH.  The JN-HSM   is a 51.2V battery,This home battery is modular with 2.816kWh increments, providing a capacity range of 8..448-22.528 kWh,providing a voltage range of 153V-409V.it can be used to support reliable power for various types of equipment and systems.

FQA
1.How about the delivery time?
Usually, we have stable stock in warehouse. The goods can be sent within 2-7 days.
2.How long of the shipping time?
It always need 3-15 days by express such as DHL and UPS, 25-45 days by sea.
3.How about the quality & warranty time?
All Battery products provided 10 years warranty
4.Can these battery pack be compatible with my inverters? e.g SUNGROW/HUAWEI/SOLIS/GROWATT/SOFAR
Yes, our battery pack can be compatible with most brands of inverters on the market.
5.Are you battery real capacity?
Yes, we can offer you the testing data of each cell to show its actual capacity, IR and so on.The actual capacity are more than its nominal capacity.

Features and benefits

1.Vertical industry integration ensures cycle life of 6000 cycles

2.Compatible with both new installations and retrofits (AC- or DC-coupled)

3.Modular design gives the end customers the power of choice of capacity

4.Compatible with large number of Hybrid inverters

5.Simple buckle fixing minimize the installation time and cost

6.Provides pre-charge function to protect ESS system from

   surge current.Up to 15 units can be stacked in parallel

7.Compact and fashionable design fits in your home environmentx

8.Comes with a 5-year warranty extendable

  HVM8.45 HVM11.26 HVM14.08 HVM16.90 HVM19.71 HVM22.53
Battery Module HVM (2.816 KWh, 51.2 V)
Number of Modules 3 4 5 6 7 8
Usable Energy 8.448 KWh 11.264KWh 14.08KWh 16.896KWh 19.712KWh 22.528KWh
Max Output Current 50 A 50 A 50 A 50 A 50A 50 A
Nominal Voltage 153 V 204 V 256 V 307 V 358 V 409 V
Operating Voltage 120~180 V 160-240 V 200~300 V 240~360 V 280~420 V 320~480 V
Dimensions (H/W/D) 905*600*245 mm 1115*600*245 mm 1325*600*245 mm 1535*600*245 mm 1745*600*245 mm 1955*600*245 mm
Weight(KG) 129 kg 167 kg 205 kg 243 kg 281 kg 319 kg
